Picture | WHP # | Dardi Reference # | Flow Reference # | Description |

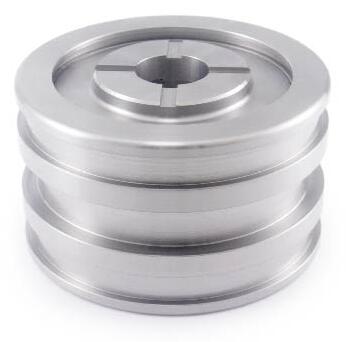

ZYF004-A | 730710080, K0508266 | 007026-1, TL-001013-1 | Piston, G7/G9 | |

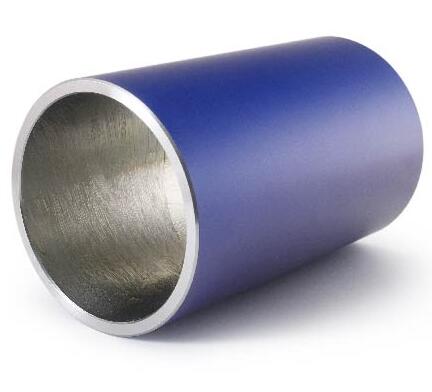

ZYF007 | 730710092, K0508121 | C-1000-1, TL-001012-1 | Low Pressure Cylinder, G7/G9 | |

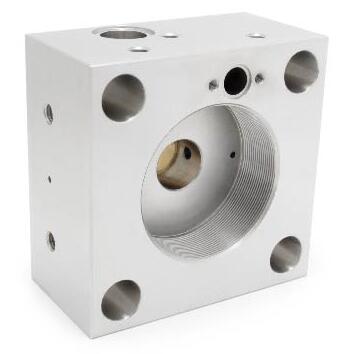

ZYF008-L | 730710061, K0508246 | 007303-2, TL-001008-2 | End Bell, Left Hand, G7 | |

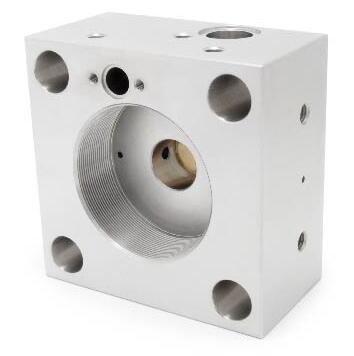

ZYF008-R | 730710061, K0508246 | 007303-1, TL-001008-1 | End Bell, Right Hand, G7 | |
ZYF009 | 730710065, K0508036 | 007038-3, TL-001002-3 | High Pressure Cylinder, G7/G9 | |
ZYF009B | 730710065, K0508036 | 007038-3, TL-001002-3 | High Pressure Cylinder, G7/G9 Black Screw Thread | |

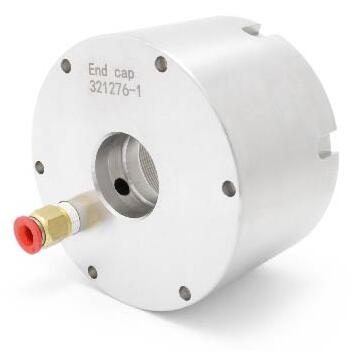

ZYF010 | 730710055, K0508249 | 321276-1, TL-001010-1 | End Cap, G7 | |
ZYF011 | 510000146, EP0058, 730710191, K0508103 | 010253-1, TL-001005-1 | High Pressure Ceramic Plunger | |

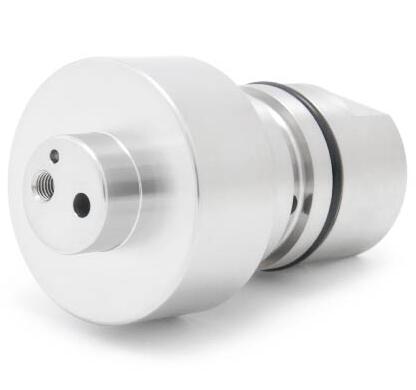

ZYF013 | 730710234, K0508059 | 004383-3, TL-001003-3 | Check Valve Body | |

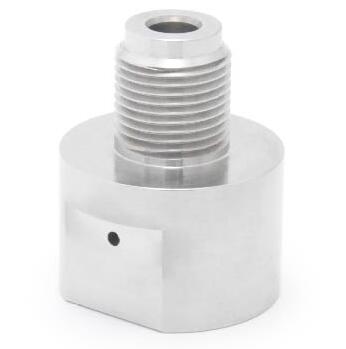

ZYF014 | 730710017, K0508280 | C-1313-1, TL-001007-1 | Outlet Body, Check Valve | |
ZYF015 | 510000391, EP0059, 730710250, K0508043 | B-1002-2, TL-001018-1 | Back-Up Seal Sleeve, G7/G9 | |
ZYF018 | 510000233, EP0074 | -- | Reversing Bracket, G6D/G9/G10 | |
ZYF019 | -- | B-8346-1 | Actuator Assy, Electronic Shift, G7/G9 | |
ZYF021Z | 510000623, EP0081, 720610035, K040105015 | 010276-1, TL-001027-1 | Spacer Oil Seal Assembly, G7/G9 | |
ZYF020 | 510000503, EP0077 | A-2409 | Spring, Compression, G9/G6D/G10 | |
ZYF022 | 510000688, EP0080 | B-1702-1 | Shifting Pin, Electrical Shift, G9/G6D/G10 | |
ZYF803-MB | 730710071, K0508081 | 004406-1, TL-001015-1, 004407-1 | HP Seal Kit, Blue, G6D/G7/G9/G10 4 ea. | |
ZYF803-HG | 730710071, K0508081 | 004406-1, TL-001015-1, 004407-1 | HP Seal Kit, Gray, G6D/G7/G9/G10 4 ea, Premium Quality | |

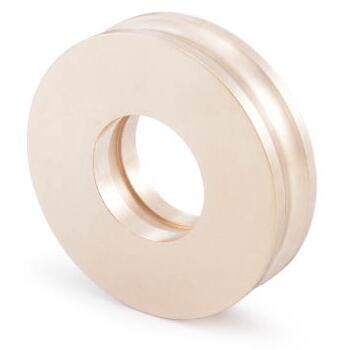

ZYF801 | 730710268, K0508251 | 010104-1, TL-004016-1 | Bronze Back-Up, G7/G9 | |

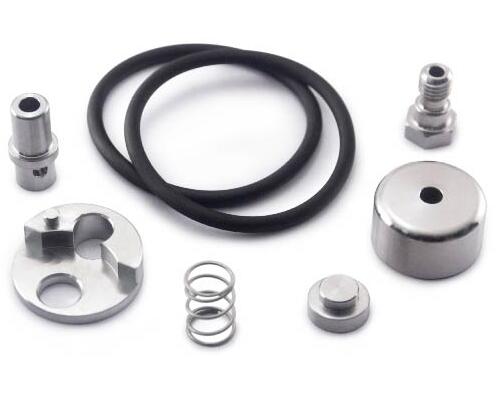

WXF200-BH | 730710247, K0508061 | 015866-1, TL-001004-1, 010642-1 | Check Valve Repair Kit, G7 |
