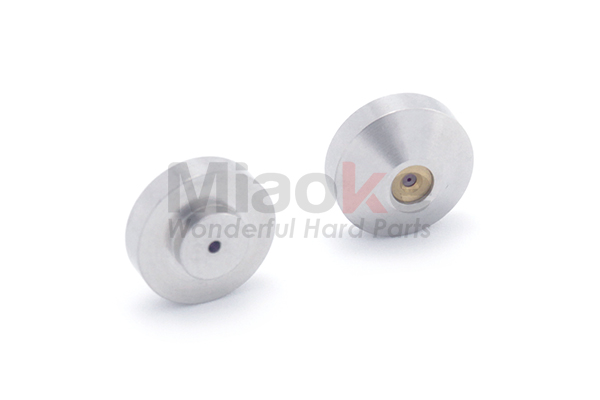

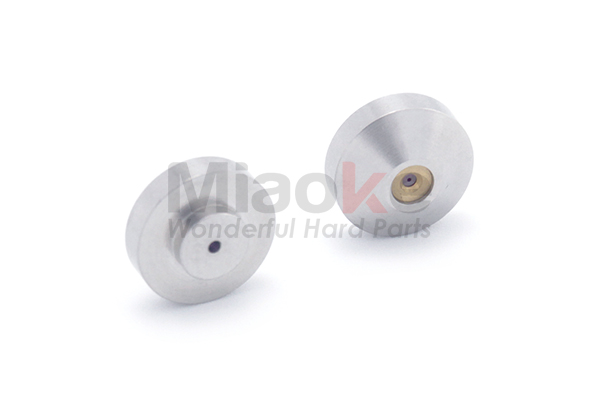

4 Axis Orifice; Ruby Sapphire & Diamond

Miaoke SKU: BSD01R-M033

Description:

To Replace Dardi 4 Axis Orifice. Ruby, Sapphire and Diamond Available.

Replaces P/N: 520005472

MOQ: 20

BUY IT ONLINE REQUEST A QUOTE

SPECIFICATIONS | Ruby - Standard Quality

PRODUCT CODE	OEM PART NUMBER	INNER DIAMETER (inch)	INNER DIAMETER (mm)	MODEL NAME
BSD01R-M010		0.004 inch	0.10 mm	Old 4-Axis
BSD01R-M013		0.005 inch	0.13 mm	Old 4-Axis
BSD01R-M015		0.006 inch	0.15 mm	Old 4-Axis
BSD01R-M018		0.007 inch	0.18 mm	Old 4-Axis
BSD01R-M020		0.008 inch	0.20 mm	Old 4-Axis
BSD01R-M023		0.009 inch	0.23 mm	Old 4-Axis
BSD01R-M025		0.010 inch	0.25 mm	Old 4-Axis
BSD01R-M028		0.011 inch	0.28 mm	Old 4-Axis
BSD01R-M030		0.012 inch	0.30 mm	Old 4-Axis
BSD01R-M033	520005472	0.013 inch	0.33 mm	Old 4-Axis
BSD01R-M035		0.014 inch	0.36 mm	Old 4-Axis
BSD01R-M038		0.015 inch	0.38 mm	Old 4-Axis
BSD01R-M041		0.016 inch	0.41 mm	Old 4-Axis
BSD01R-M046		0.018 inch	0.46 mm	Old 4-Axis
BSD01R-M050		0.020 inch	0.50 mm	Old 4-Axis
BSD01R-M070		0.028 inch	0.70 mm	Old 4-Axis

SPECIFICATIONS | Ruby - High Quality

PRODUCT CODE	OEM PART NUMBER	INNER DIAMETER (inch)	INNER DIAMETER (mm)	MODEL NAME
BSD01R-H010		0.004 inch	0.10 mm	Old 4-Axis
BSD01R-H013		0.005 inch	0.13 mm	Old 4-Axis
BSD01R-H015		0.006 inch	0.15 mm	Old 4-Axis
BSD01R-H018		0.007 inch	0.18 mm	Old 4-Axis
BSD01R-H020		0.008 inch	0.20 mm	Old 4-Axis
BSD01R-H023		0.009 inch	0.23 mm	Old 4-Axis
BSD01R-H025		0.010 inch	0.25 mm	Old 4-Axis
BSD01R-H028		0.011 inch	0.28 mm	Old 4-Axis
BSD01R-H030		0.012 inch	0.30 mm	Old 4-Axis
BSD01R-H033	520005472	0.013 inch	0.33 mm	Old 4-Axis
BSD01R-H035		0.014 inch	0.36 mm	Old 4-Axis
BSD01R-H038		0.015 inch	0.38 mm	Old 4-Axis
BSD01R-H041		0.016 inch	0.41 mm	Old 4-Axis
BSD01R-H046		0.018 inch	0.46 mm	Old 4-Axis
BSD01R-H050		0.020 inch	0.50 mm	Old 4-Axis
BSD01R-H070		0.028 inch	0.70 mm	Old 4-Axis

SPECIFICATIONS | Sapphire

PRODUCT CODE	OEM PART NUMBER	INNER DIAMETER (inch)	INNER DIAMETER (mm)	MODEL NAME
BSD01S-010		0.004 inch	0.10 mm	Old 4-Axis
BSD01S-013		0.005 inch	0.13 mm	Old 4-Axis
BSD01S-015		0.006 inch	0.15 mm	Old 4-Axis
BSD01S-018		0.007 inch	0.18 mm	Old 4-Axis
BSD01S-020		0.008 inch	0.20 mm	Old 4-Axis
BSD01S-023		0.009 inch	0.23 mm	Old 4-Axis
BSD01S-025		0.010 inch	0.25 mm	Old 4-Axis
BSD01S-028		0.011 inch	0.28 mm	Old 4-Axis
BSD01S-030		0.012 inch	0.30 mm	Old 4-Axis
BSD01S-033	520005472	0.013 inch	0.33 mm	Old 4-Axis
BSD01S-035		0.014 inch	0.36 mm	Old 4-Axis
BSD01S-038		0.015 inch	0.38 mm	Old 4-Axis
BSD01S-041		0.016 inch	0.41 mm	Old 4-Axis
BSD01S-046		0.018 inch	0.46 mm	Old 4-Axis
BSD01S-050		0.020 inch	0.50 mm	Old 4-Axis
BSD01S-070		0.028 inch	0.70 mm	Old 4-Axis

SPECIFICATIONS | Diamond

PRODUCT CODE	OEM PART NUMBER	INNER DIAMETER (inch)	INNER DIAMETER (mm)	MODEL NAME
BSD01D-010		0.004 inch	0.10 mm	Old 4-Axis
BSD01D-013		0.005 inch	0.13 mm	Old 4-Axis
BSD01D-015		0.006 inch	0.15 mm	Old 4-Axis
BSD01D-018		0.007 inch	0.18 mm	Old 4-Axis
BSD01D-020		0.008 inch	0.20 mm	Old 4-Axis
BSD01D-023		0.009 inch	0.23 mm	Old 4-Axis
BSD01D-025		0.010 inch	0.25 mm	Old 4-Axis
BSD01D-028		0.011 inch	0.28 mm	Old 4-Axis
BSD01D-030		0.012 inch	0.30 mm	Old 4-Axis
BSD01D-033	520005472	0.013 inch	0.33 mm	Old 4-Axis
BSD01D-035		0.014 inch	0.36 mm	Old 4-Axis
BSD01D-038		0.015 inch	0.38 mm	Old 4-Axis
BSD01D-041		0.016 inch	0.41 mm	Old 4-Axis
BSD01D-046		0.018 inch	0.46 mm	Old 4-Axis
BSD01D-050		0.020 inch	0.50 mm	Old 4-Axis
BSD01D-070		0.028 inch	0.70 mm	Old 4-Axis
