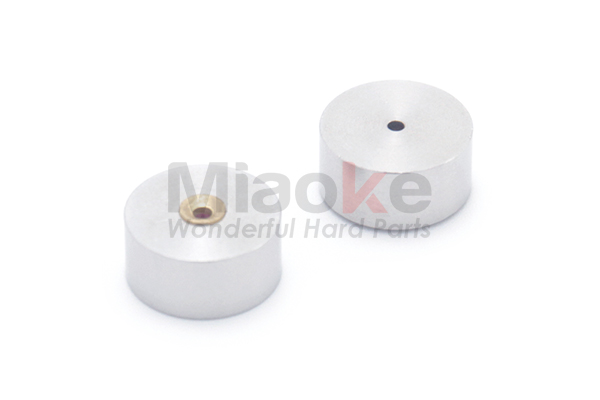

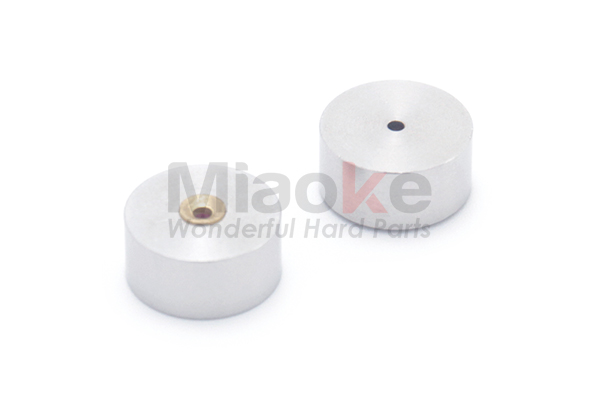

New 4 Axis Orifice Assy; Dardi type; Standard Quality

Miaoke SKU: BSD02R-M033

Description:

To Replace Dardi New 4 Axis Orifice. Ruby, Sapphire and Diamond Available.

Replaces P/N: 520005732

MOQ: 20

BUY IT ONLINE REQUEST A QUOTE

SPECIFICATIONS | Ruby Standard Quality

PRODUCT CODE	OEM PART NUMBER	INNER DIAMETER (inch)	INNER DIAMETER (mm)	MODEL NAME
BSD02R-M010		0.004 inch	0.10 mm	New 4-Axis
BSD02R-M013		0.005 inch	0.13 mm	New 4-Axis
BSD02R-M015		0.006 inch	0.15 mm	New 4-Axis
BSD02R-M018		0.007 inch	0.18 mm	New 4-Axis
BSD02R-M020		0.008 inch	0.20 mm	New 4-Axis
BSD02R-M023		0.009 inch	0.23 mm	New 4-Axis
BSD02R-M025		0.010 inch	0.25 mm	New 4-Axis
BSD02R-M028		0.011 inch	0.28 mm	New 4-Axis
BSD02R-M030	520005733	0.012 inch	0.30 mm	New 4-Axis
BSD02R-M033	520005732	0.013 inch	0.33 mm	New 4-Axis
BSD02R-M035		0.014 inch	0.36 mm	New 4-Axis
BSD02R-M038		0.015 inch	0.38 mm	New 4-Axis
BSD02R-M041		0.016 inch	0.41 mm	New 4-Axis
BSD02R-M046		0.018 inch	0.46 mm	New 4-Axis
BSD02R-M050		0.020 inch	0.50 mm	New 4-Axis
BSD02R-M070		0.028 inch	0.70 mm	New 4-Axis

SPECIFICATIONS | Sapphire

PRODUCT CODE	OEM PART NUMBER	INNER DIAMETER (inch)	INNER DIAMETER (mm)	MODEL NAME
BSD02S-010		0.004 inch	0.10 mm	New 4-Axis
BSD02S-013		0.005 inch	0.13 mm	New 4-Axis
BSD02S-015		0.006 inch	0.15 mm	New 4-Axis
BSD02S-018		0.007 inch	0.18 mm	New 4-Axis
BSD02S-020		0.008 inch	0.20 mm	New 4-Axis
BSD02S-023		0.009 inch	0.23 mm	New 4-Axis
BSD02S-025		0.010 inch	0.25 mm	New 4-Axis
BSD02S-028		0.011 inch	0.28 mm	New 4-Axis
BSD02S-030	520005733	0.012 inch	0.30 mm	New 4-Axis
BSD02S-033	520005732	0.013 inch	0.33 mm	New 4-Axis
BSD02S-035		0.014 inch	0.36 mm	New 4-Axis
BSD02S-038		0.015 inch	0.38 mm	New 4-Axis
BSD02S-041		0.016 inch	0.41 mm	New 4-Axis
BSD02S-046		0.018 inch	0.46 mm	New 4-Axis
BSD02S-050		0.020 inch	0.50 mm	New 4-Axis
BSD02S-070		0.028 inch	0.70 mm	New 4-Axis

SPECIFICATIONS | Diamond

PRODUCT CODE	OEM PART NUMBER	INNER DIAMETER (inch)	INNER DIAMETER (mm)	MODEL NAME
BSD02D-010		0.004 inch	0.10 mm	New 4-Axis
BSD02D-013		0.005 inch	0.13 mm	New 4-Axis
BSD02D-015		0.006 inch	0.15 mm	New 4-Axis
BSD02D-018		0.007 inch	0.18 mm	New 4-Axis
BSD02D-020		0.008 inch	0.20 mm	New 4-Axis
BSD02D-023		0.009 inch	0.23 mm	New 4-Axis
BSD02D-025		0.010 inch	0.25 mm	New 4-Axis
BSD02D-028		0.011 inch	0.28 mm	New 4-Axis
BSD02D-030	520005733	0.012 inch	0.30 mm	New 4-Axis
BSD02D-033	520005732	0.013 inch	0.33 mm	New 4-Axis
BSD02D-035		0.014 inch	0.36 mm	New 4-Axis
BSD02D-038		0.015 inch	0.38 mm	New 4-Axis
BSD02D-041		0.016 inch	0.41 mm	New 4-Axis
BSD02D-046		0.018 inch	0.46 mm	New 4-Axis
BSD02D-050		0.020 inch	0.50 mm	New 4-Axis
BSD02D-070		0.028 inch	0.70 mm	New 4-Axis
