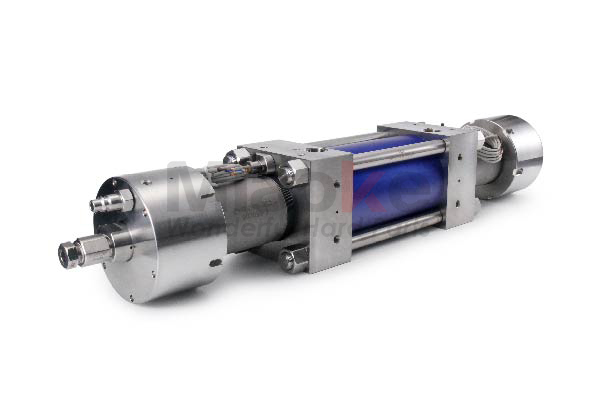

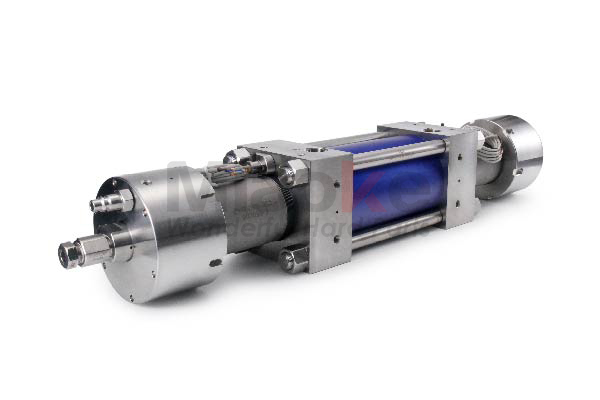

Top Mount; To Replace H2O Genuine Waterjet Parts Long Block Intensifier Assembly. The Part Number 301020-6-3-HL.
| QTY | Picture | WHP# | Reference Code | Description |
| 1 |  | ZYF004Z-A | 301023-1, TL-001013-1 1-12349 | Hydraulic Piston Assembly [ parts details see catalog page 17 ] |
| 2 |  | ZYF011 | 010253-1, TL-001005-1, 100013-1, 1-11309 | High Pressure Ceramic Plunger |
| 1 |  | ZYF007 | C-1000-1, TL-001012-1, 100008-1, 1-11284 | Low Pressure Cylinder, Chrome Plated |
| 1 |  | ZYF008-L | 007303-2, TL-001008-2, 301001-1-L, 1-11433 | End Bell, Left Hand |
| 1 |  | ZYF008-R | 007303-1, TL-001008-1, 301001-1-R, 1-11432 | End Bell, Right Hand |
| 2 |  | ZYF602 | A-11275, 1-12340 | Spring Engerized Rod Seal |
| 2 |  | ZYF021Z | 010276-1, TL-001027-1, 1-11468 | Spacer Oil Seal Assembly |
| 2 |  | ZYF019 | B-8346-1, 1-12378 | Actuator Assy, Electronic Shift |
| 2 |  | ZYF020 | A-2409 | Spring, Compression, Music Wire |
| 2 |  | ZYF022 | B-1702-1, 1-11470 | Shifting Pin, Electrical Shift |
| 2 |  | ZYF023 | 011275-1, 1-12357 | Sensor Assy, Electric Shift, 24V w/ Screw, O-ring-012 & Backup ring-012 |
| 2 |  | ZYF60Z | A-00250-240, A-0275-240 | Back-up Ring Yellow -240 & O-Ring -240 |
| 4 |  | ZYF012 | B-1000-2, A-1000, 1-11471 | Tie Rod Including Hex Nut(A-1000)*2 |
| 2 |  | ZYF009B | 007038-3, TL-001002-3, 100001-1, 1-11117 | High Pressure Cylinder |
| 2 |  | ZYF015 | B-1002-2, TL-001018-1, 1-11365 | Back-Up Seal Sleeve |
| 1 |  | ZYF800-HB | 001198-1, TL-001001-1, 1-11135 | HP Seal Kit Assy, Prime Blue |
| 2 |  | ZYK013Z | 301002-3 | Check Valve Assembly, H2O Style [ parts details see catalog page 20 ] |
| 2 |  | ZYF010N | 321276-1, TL-001010-1, 1-11420 | High Pressure End Cap Quick Disconnect Nipple |
| 2 |  | TYC3 | A-2839, 400006-2, ACL60 | HP Collar, 3/8" |
| 2 |  | TYG3 | A-2838, 400005-2, AGL60 | HP Gland, 3/8" |
| 2 |  | OR023BB9 | A-00633-023 | O-Ring, Buna-N, 90A, -023 |
| 1 |  | ZYF036 | 1-13006 | Hydraulic Manifold, Top Mount |
| 1 |  | ZYF034 | A-18862, 1-11733 | Electrical Shift and Pilot Assembly, 24V |
