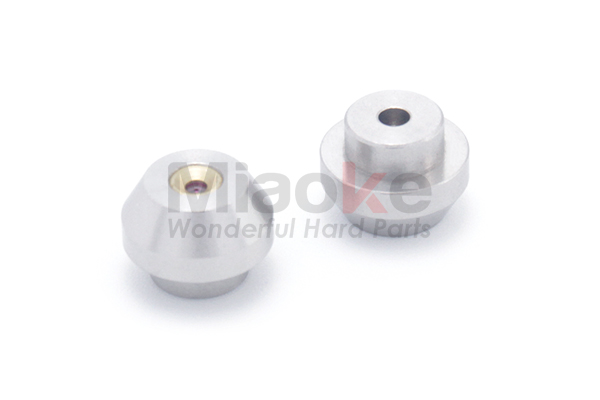

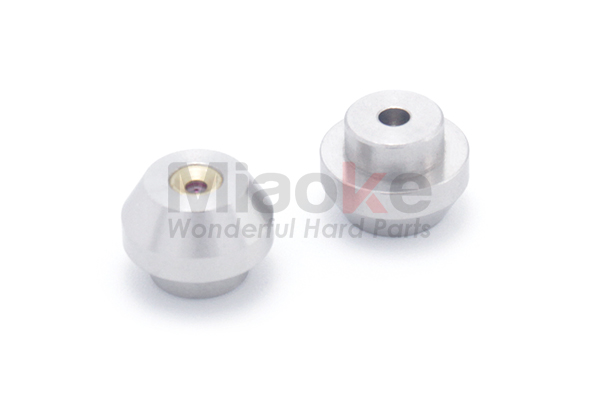

High quality; Replace Flow Low Mass Ruby Orifice Assy.
| PRODUCT CODE | OEM PART NUMBER | INNER DIAMETER (inch) | INNER DIAMETER (mm) | MODEL NAME |
| BSF07R-H010 | 003788-4; TL-003003-4 | 0.004 inch | 0.10 mm | Low Mass |
| BSF07R-H013 | 003788-5; TL-003003-5 | 0.005 inch | 0.13 mm | Low Mass |
| BSF07R-H015 | 003788-6; TL-003003-6 | 0.006 inch | 0.15 mm | Low Mass |
| BSF07R-H018 | 003788-7; TL-003003-7 | 0.007 inch | 0.18 mm | Low Mass |
| BSF07R-H020 | 003788-8; TL-003003-8 | 0.008 inch | 0.20 mm | Low Mass |
| BSF07R-H023 | 003788-9; TL-003003-9 | 0.009 inch | 0.23 mm | Low Mass |
| BSF07R-H025 | 003788-10; TL-003003-10 | 0.010 inch | 0.25 mm | Low Mass |
| BSF07R-H028 | 003788-11; TL-003003-11 | 0.011 inch | 0.28 mm | Low Mass |
| BSF07R-H030 | 003788-12; TL-003003-12 | 0.012 inch | 0.30 mm | Low Mass |
| BSF07R-H033 | 003788-13; TL-003003-13 | 0.013 inch | 0.33 mm | Low Mass |
| BSF07R-H035 | 003788-14; TL-003003-14 | 0.014 inch | 0.36 mm | Low Mass |
| BSF07R-H038 | 003788-15; TL-003003-15 | 0.015 inch | 0.38 mm | Low Mass |
| BSF07R-H041 | 003788-16; TL-003003-16 | 0.016 inch | 0.41 mm | Low Mass |
| BSF07R-H046 | 003788-18; TL-003003-18 | 0.018 inch | 0.46 mm | Low Mass |
| BSF07R-H050 | 003788-20; TL-003003-20 | 0.020 inch | 0.50 mm | Low Mass |
| BSF07R-H070 | 003788-28; TL-003003-28 | 0.028 inch | 0.70 mm | Low Mass |
