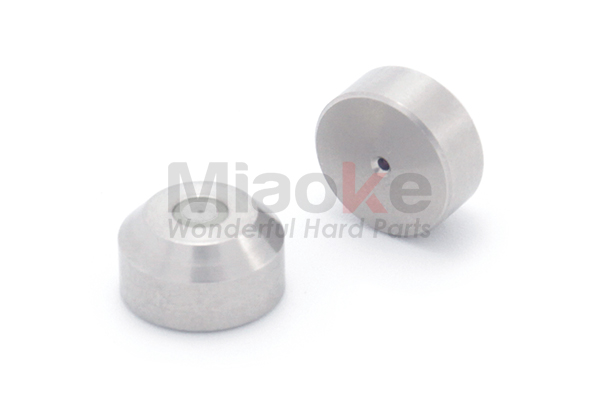

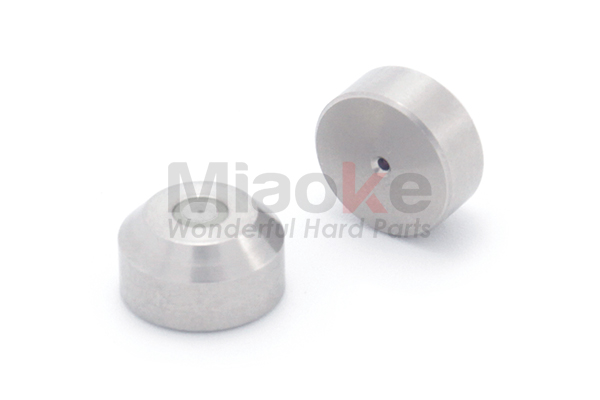

Paser 4, Diamond Orifice Assy

Miaoke SKU: BSF02D-025_Group

Description:

Replace Flow Paser 4 Diamond Orifice Assy; It's also compatable to H2O and KMT.

Replaces P/N: 015849-10_Group

MOQ: 2

BUY IT ONLINE REQUEST A QUOTE

SPECIFICATIONS

PRODUCT CODE	OEM PART NUMBER	INNER DIAMETER (inch)	INNER DIAMETER (mm)	MODEL NAME
BSF02D-010	015849-4	0.004 inch	0.10 mm	Paser 4
BSF02D-013	015849-5	0.005 inch	0.13 mm	Paser 4
BSF02D-015	015849-6	0.006 inch	0.15 mm	Paser 4
BSF02D-018	015849-7	0.007 inch	0.18 mm	Paser 4
BSF02D-020	015849-8	0.008 inch	0.20 mm	Paser 4
BSF02D-023	015849-9	0.009 inch	0.23 mm	Paser 4
BSF02D-025	015849-10	0.010 inch	0.25 mm	Paser 4
BSF02D-028	015849-11	0.011 inch	0.28 mm	Paser 4
BSF02D-030	015849-12	0.012 inch	0.30 mm	Paser 4
BSF02D-033	015849-13	0.013 inch	0.33 mm	Paser 4
BSF02D-035	015849-14	0.014 inch	0.36 mm	Paser 4
BSF02D-038	015849-15	0.015 inch	0.38 mm	Paser 4
BSF02D-041	015849-16	0.016 inch	0.41 mm	Paser 4
BSF02D-046	015849-18	0.018 inch	0.46 mm	Paser 4
BSF02D-050	015849-20	0.020 inch	0.50 mm	Paser 4
BSF02D-070	015849-28	0.028 inch	0.70 mm	Paser 4

PART NUMBER CROSS REFERENCE

MIAOKE PART NUMBER	FLOW OEM PART NUMBER	H2O OEM PART NUMBER
BSF02D-010	015849-4	291502-04
BSF02D-013	015849-5	291502-05
BSF02D-015	015849-6	291502-06
BSF02D-018	015849-7	291502-07
BSF02D-020	015849-8	291502-08
BSF02D-023	015849-9	291502-09
BSF02D-025	015849-10	291502-10
BSF02D-028	015849-11	291502-11
BSF02D-030	015849-12	291502-12
BSF02D-033	015849-13	291502-13
BSF02D-035	015849-14	291502-14
BSF02D-038	015849-15	291502-15
BSF02D-041	015849-16	291502-16
BSF02D-046	015849-18	291502-18
BSF02D-050	015849-20	291502-20
BSF02D-070	015849-28	291502-28
