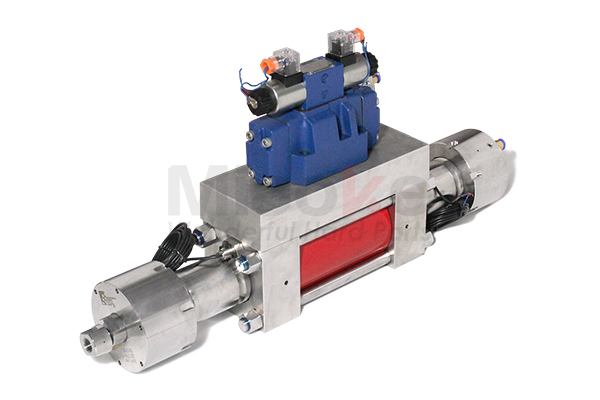

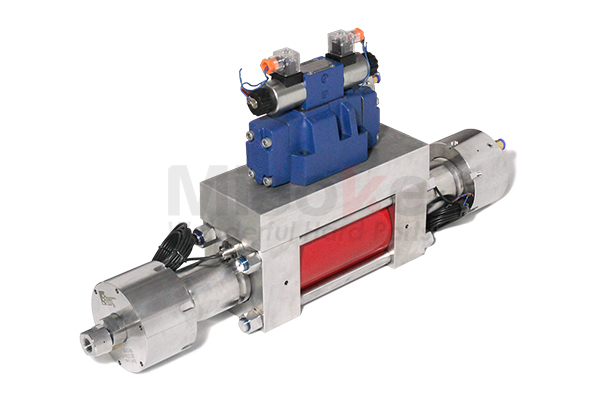

Long Block Intensifier Assembly

Miaoke SKU: ZYF001

Description:

Top Mount; To Replace Flow Genuine Waterjet Parts Long Block Intensifier Assembly. The Part Number 010583-3.

Replaces P/N: 010583-3

MOQ: 1

We would love to hear from you!

Please fill out this form and we will get in touch with you shortly. *Notes required information.

In Miaoke
Every action is
Customer-oriented

QTY	Picture	WHP#	Reference Code	Description
1		ZYF004Z-B	301023-1, TL-001013-1 1-12349	Hydraulic Piston Assembly [ parts details see catalog page 17 ]
2		ZYF011	010253-1, TL-001005-1, 100013-1, 1-11309	High Pressure Ceramic Plunger
1		ZYF007	C-1000-1, TL-001012-1, 100008-1, 1-11284	Low Pressure Cylinder, Chrome Plated
1		ZYF008-L	007303-2, TL-001008-2, 301001-1-L, 1-11433	End Bell, Left Hand
1		ZYF008-R	007303-1, TL-001008-1, 301001-1-R, 1-11432	End Bell, Right Hand
2		ZYF602	A-11275, 1-12340	Spring Engerized Rod Seal
2		ZYF021Z	010276-1, TL-001027-1, 1-11468	Spacer Oil Seal Assembly
2		ZYF019	B-8346-1, 1-12378	Actuator Assy, Electronic Shift
2		ZYF020	A-2409	Spring, Compression, Music Wire
2		ZYF022	B-1702-1, 1-11470	Shifting Pin, Electrical Shift
2		ZYF018		Reversing Bracket
2		ZYF025	--	Cable Assembly
2		ZYF60Z	A-00250-240, A-0275-240	Back-up Ring Yellow -240 & O-Ring -240
4		ZYF012	B-1000-2, A-1000, 1-11471	Tie Rod Including Hex Nut(A-1000)*2
2		ZYF009B	007038-3, TL-001002-3, 100001-1, 1-11117	High Pressure Cylinder
2		ZYF015	B-1002-2, TL-001018-1, 1-11365	Back-Up Seal Sleeve
1		ZYF800-HB	001198-1, TL-001001-1, 1-11135	HP Seal Kit Assy, Prime Blue
2		ZYF013Z	010559-3, 004384-3, 1-11421	Check Valve Assembly [ parts details see catalog page 18 ]
2		ZYF010	321276-1, TL-001010-1, 1-11420	High Pressure End Cap
2		TYC3	A-2839, 400006-2, ACL60	HP Collar, 3/8"
2		TYG3	A-2838, 400005-2, AGL60	HP Gland, 3/8"
2		OR023BB9	A-00633-023	O-Ring, Buna-N, 90A, -023
1		ZYF036	1-13006	Hydraulic Manifold, Top Mount
1		ZYF034	A-18862, 1-11733	Electrical Shift and Pilot Assembly, 24V
